NVIDIA TURING
GeForce RTX™ graphics cards are powered by the Turing GPU architecture and the all-new RTX platform. This gives you up to 6X the performance of previous-generation graphics cards and brings the power of real-time ray tracing and AI to games.
UP TO6XFASTER PERFORMANCE
REAL-TIMERAY TRACINGIN GAMES
POWERFULAIENHANCED GRAPHICS

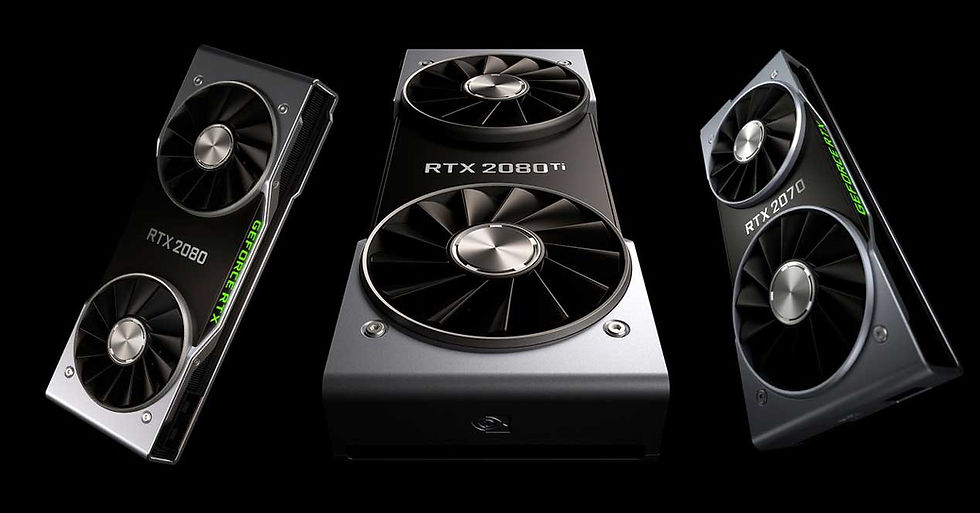

GEFORCE RTX 2080 Ti
The factory overclocked GeForce RTX™ 2080 Ti Founders Edition graphics card features a next-gen 13-phase power supply for maximum overclocking and dual-axial 13-blade fans coupled with a new vapor chamber for ultra-cool and quiet performance.
GEFORCE RTX 2080 Ti
GEFORCE RTX 2080 Ti FOUNDERS EDITION
Reference SpecProduct Spec
GPU Engine Specs:
43524352NVIDIA CUDA® Cores
76T78TRTX-OPS
1010Giga Rays/s
15451635(OC)Boost Clock (MHz)
13501350Base Clock (MHz)
Memory Specs:
14 Gbps14 GbpsMemory Speed
11 GB GDDR611 GB GDDR6Standard Memory Config
352-bit352-bitMemory Interface Width
616 GB/s616 GB/sMemory Bandwidth (GB/sec)
Technology Support:
YesYesReal-Time Ray Tracing
YesYesNVIDIA® GeForce Experience
YesYesNVIDIA Ansel
YesYesNVIDIA® Highlights
YesYesNVIDIA G-SYNC™ Compatible
YesYesGame Ready Drivers
YesYesMicrosoft® DirectX® 12 API, Vulkan API, OpenGL 4/5
YesYesDisplayPort 1.4, HDMI 2.0b2
YesYesHDCP 2.2
44NVIDIA® GPU Boost™
Yes - With NVIDIA RTX NVLink BridgeYes - With NVIDIA RTX NVLink BridgeNVIDIA NVLink (SLI-Ready)
YesYesVR Ready
YesYesDesigned for USB Type-C™ and VirtualLink™4
Display Support:
7680x43207680x4320Maximum Digital Resolution1
DisplayPort, HDMI, USB Type-C™Standard Display Connectors
44Multi Monitor
2.22.2HDCP
Graphics Card Dimensions:
4.556” (115.7mm)Height
10.5” (266.74mm)Length
2-SlotWidth
Thermal and Power Specs:
8989Maximum GPU Temperature (in C)
250W260WGraphics Card Power (W)
650W650WRecommended System Power (W)3
8 pin + 8 pin8 pin + 8 pinSupplementary Power Connectors
1 - 4k 12-bit HDR at 144Hz or 8k 12-bit HDR at 60Hz over one DisplayPort 1.4 connector (with DSC).
2 - DisplayPort 1.4a Ready, DSC 1.2 Ready.
3 - Recommendation is made based on PC configured with an Intel Core i7 3.2 GHz processor. Pre-built system may require less power depending on system configuration.
4 - In preparation for the emerging VirtualLink standard, Turing GPUs have implemented hardware support according to the “VirtualLink Advance Overview”. To learn more about VirtualLink, please see http://www.virtuallink.org.
